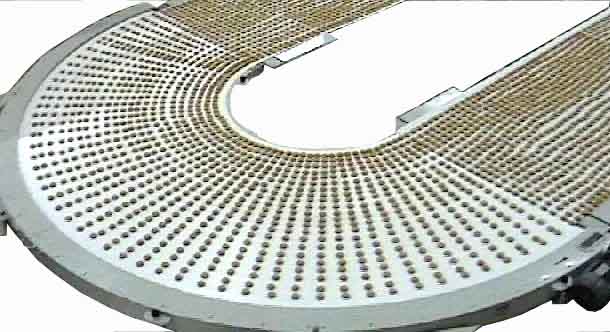

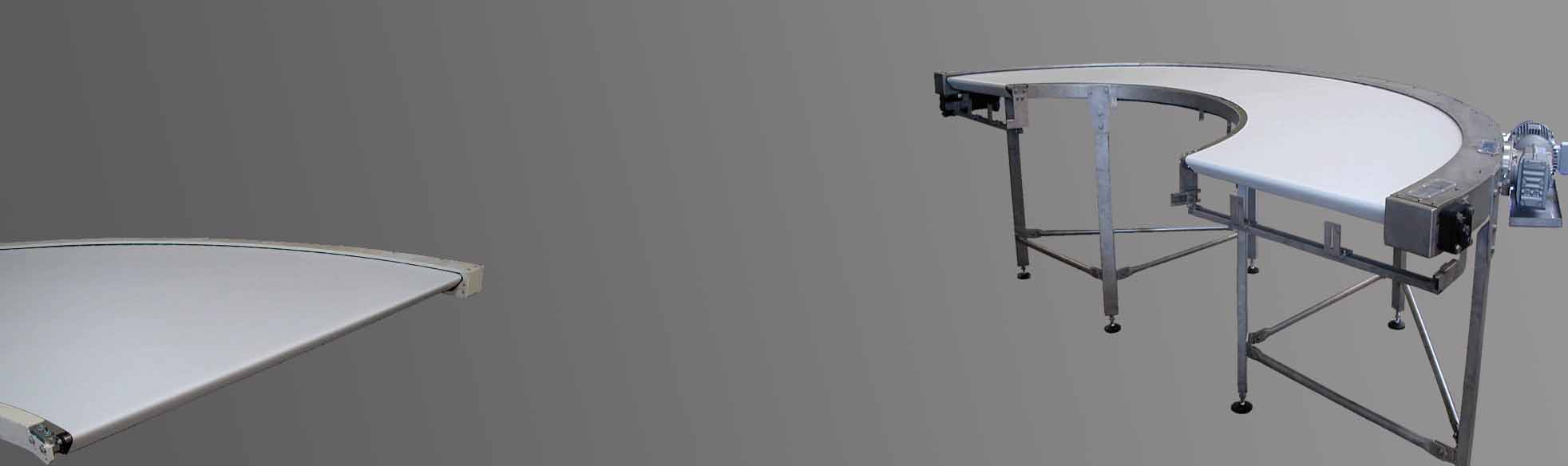

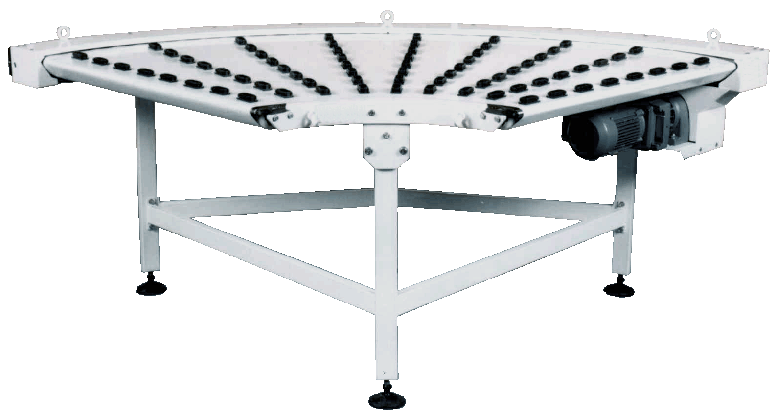

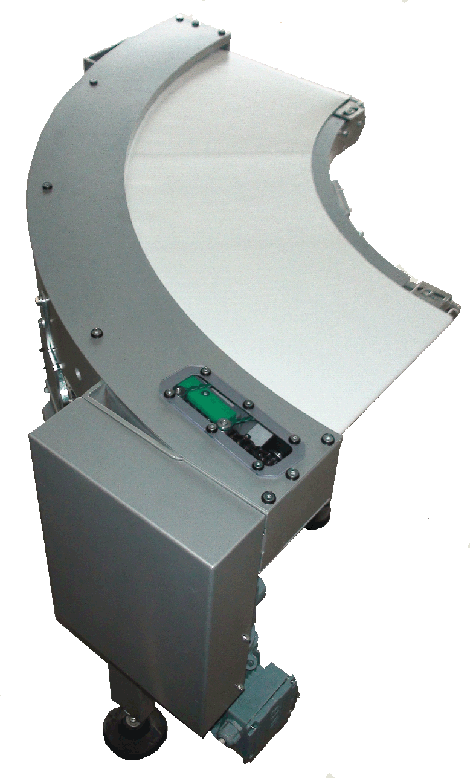

CURVED BELTS

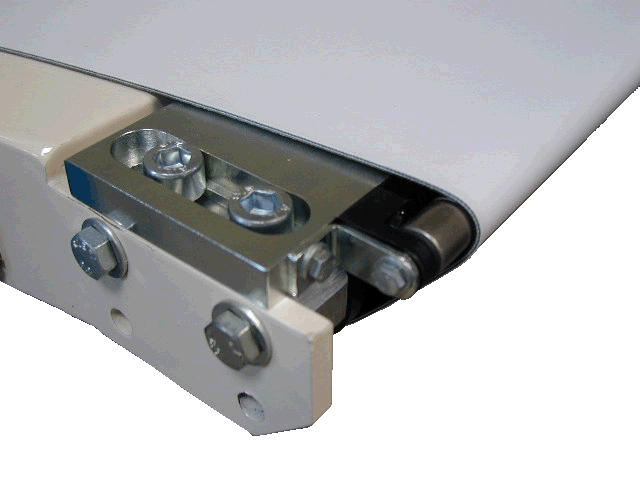

Specifically designed to enhance the transfer of the products to the upstream and downstream conveyor belts. The smooth transfer is achieved by means of knife edge rollers available in 22 mm or 14 mm diameter. Belt tensioning and regular motion is secured by means of rubbery special loops. Can be motorized by AC or Brushless.

From the narrow size as 150mm to the maximum standard size of 1800mm. Wider curved belts can be also provided as special construction.

Angles available from 45° to 180°.

The belt is tensioned and is driven by means of rubbery loops to assure a smooth running.
